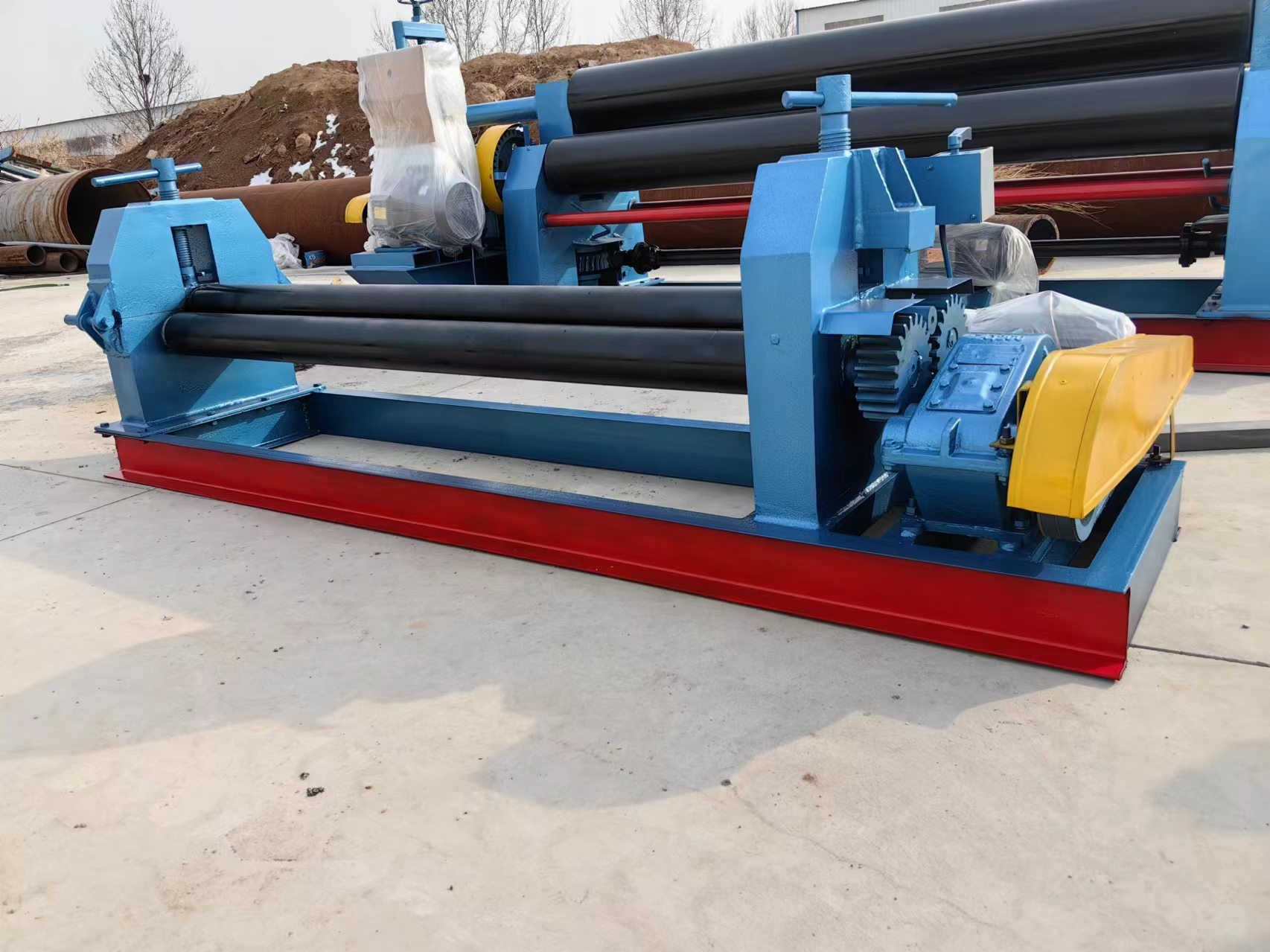

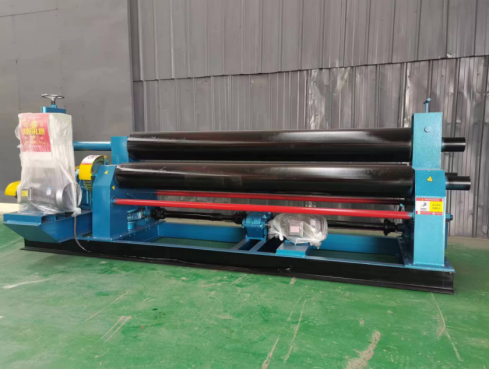

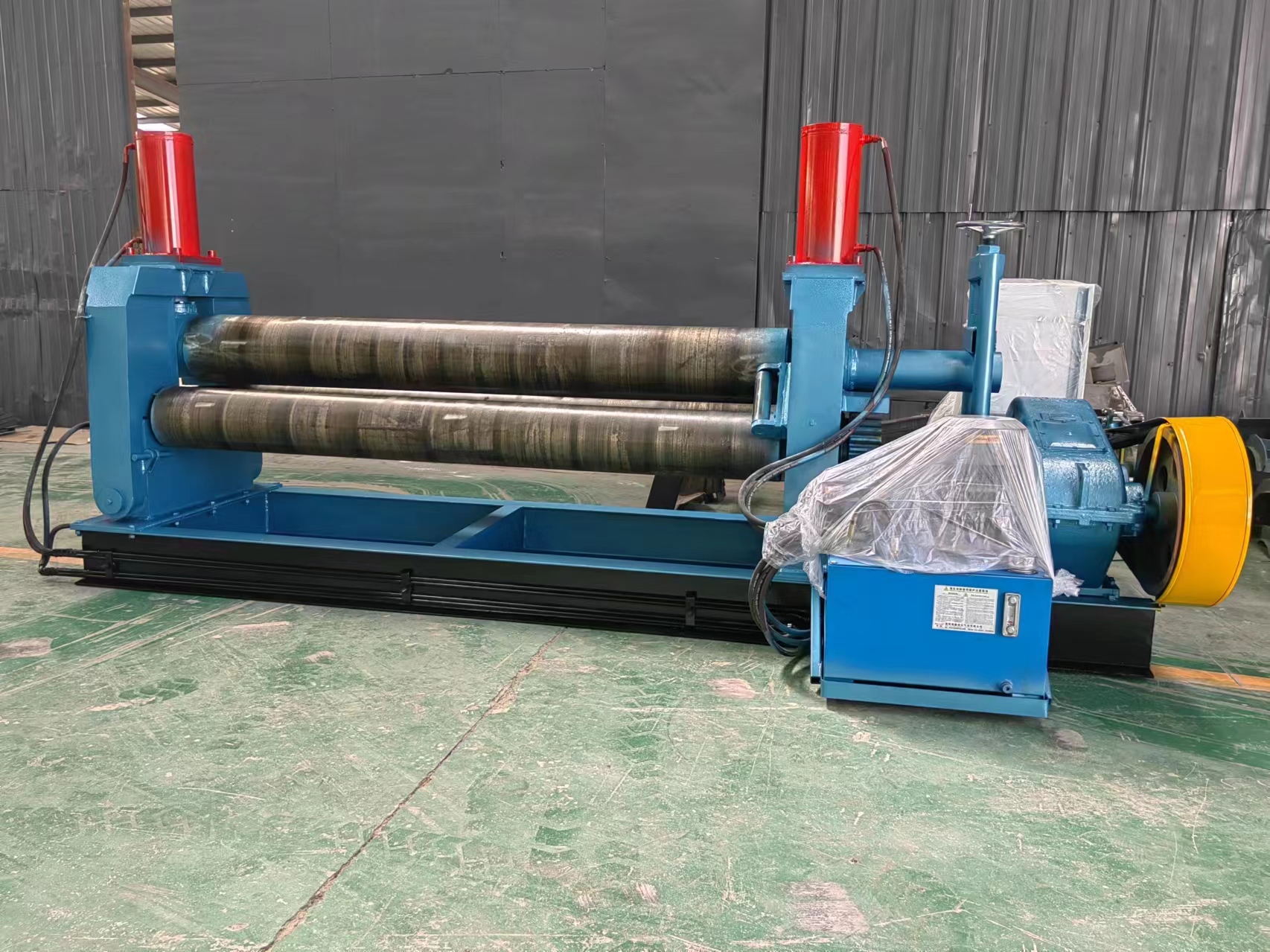

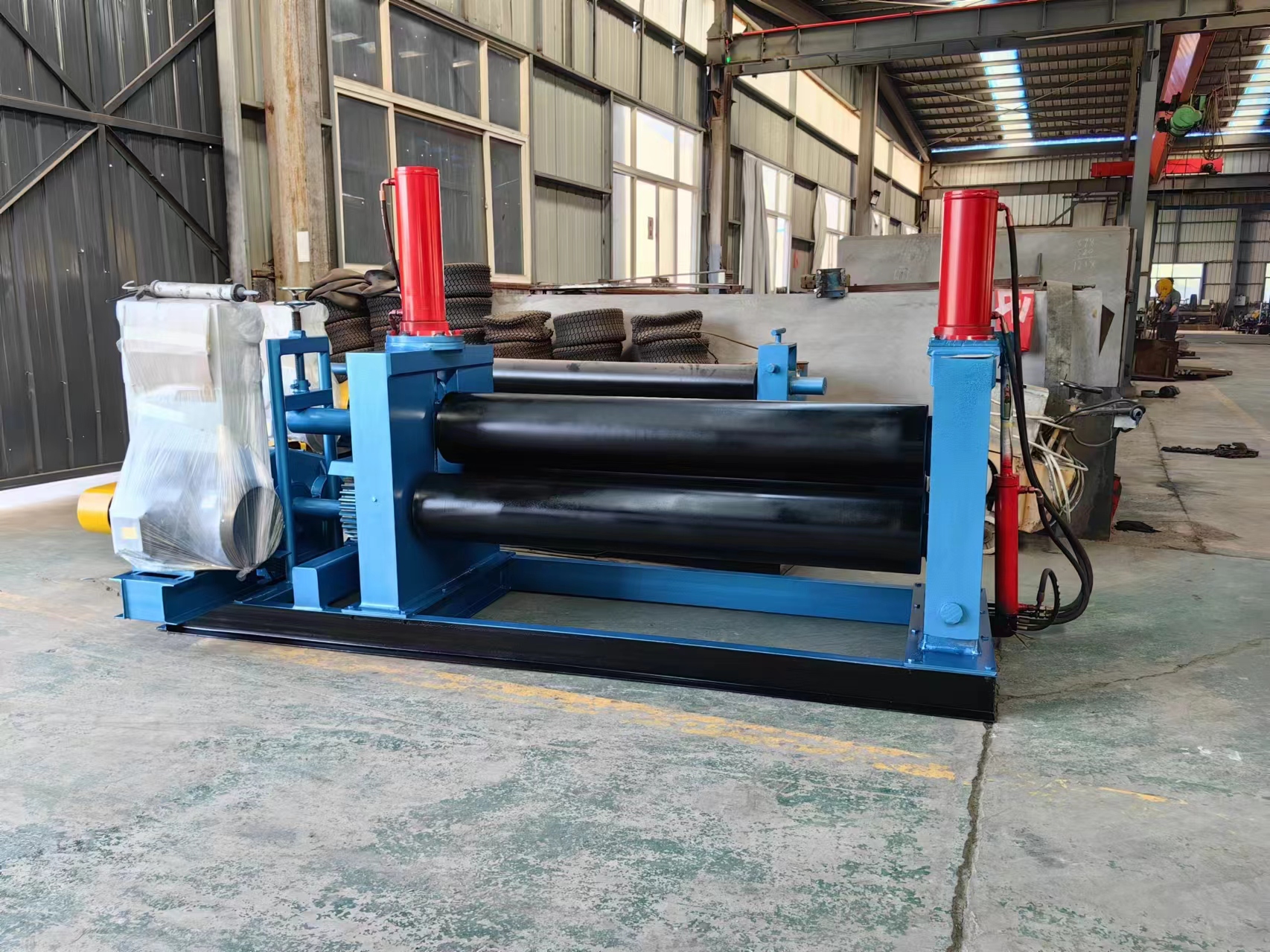

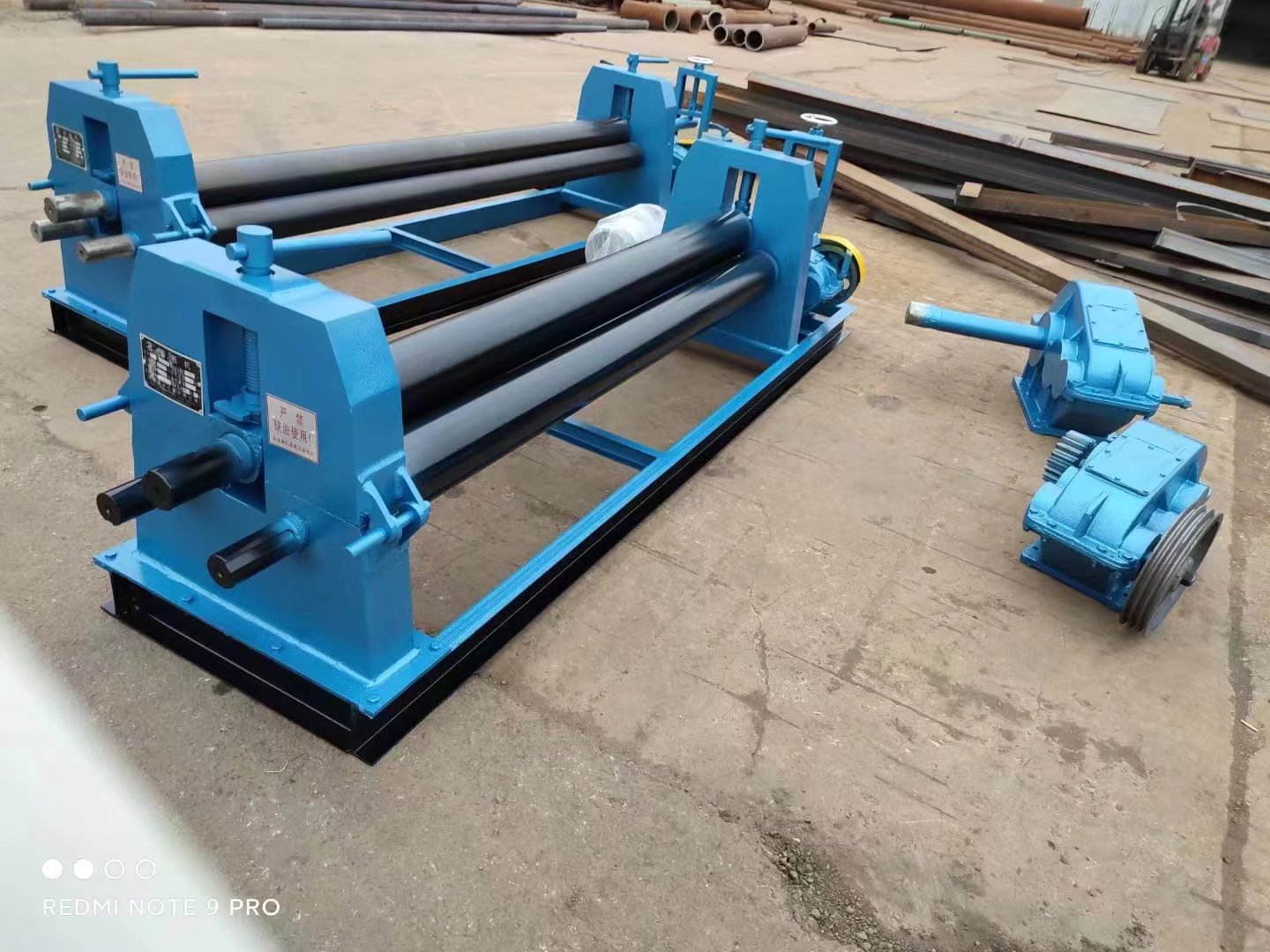

Automatic high-efficiency heavy industrial plate rolling machine for Stainless steel and aluminum


Parameter

Product name:Rolling machine

Model:KL-1225

Type:automatic

Three roller material: No. 20 carbon steel pipe

Plate rolling machine thickness: 12mm

Maximum coil width: 2500mm

Maximum coil thickness: 12mm

Material: Q235

Upper roller diameter: 240mm

Lower roller diameter: 215mm

Rolling speed: about 4.5m/min

Main reducer: Type 350

Attached reducer: type 200

Main motor power: 7.5KW

Attached motor power: 3KW

Reducer speed ratio: input 48.57 output one revolution

Control method: wireless remote control handle

Equipment size mm:4100*1420*1300

Voltage: 220V50HZ three phase

Mold

Scope of application:

Material: Copper

Round tube diameter: 19mm/25.4mm/38mm

Wall thickness: 1mm and 5mm

Coil diameter: 1m and 3m

Packing

Standard trade wooden case
