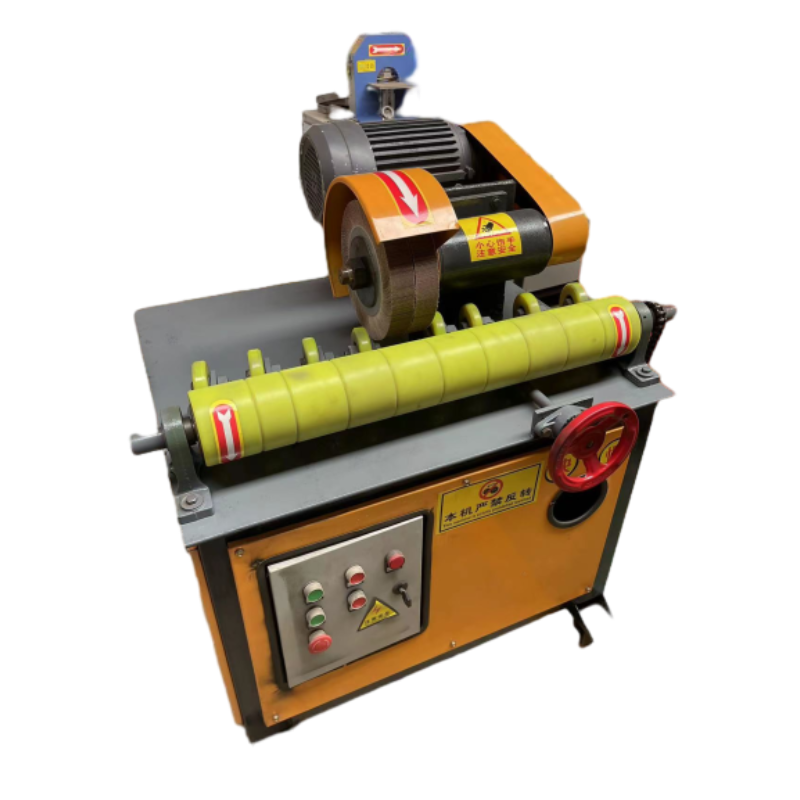

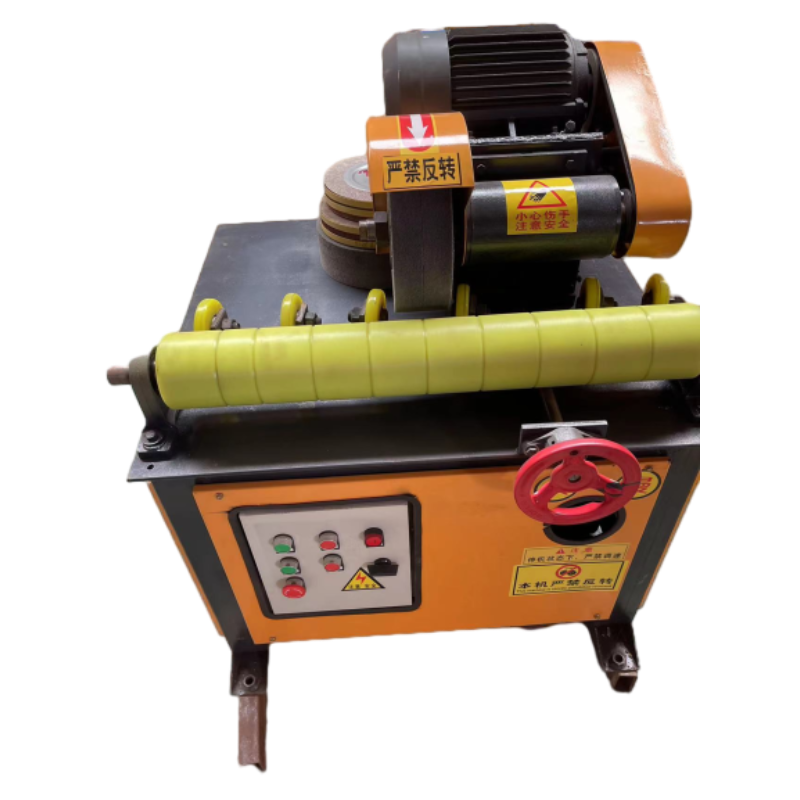

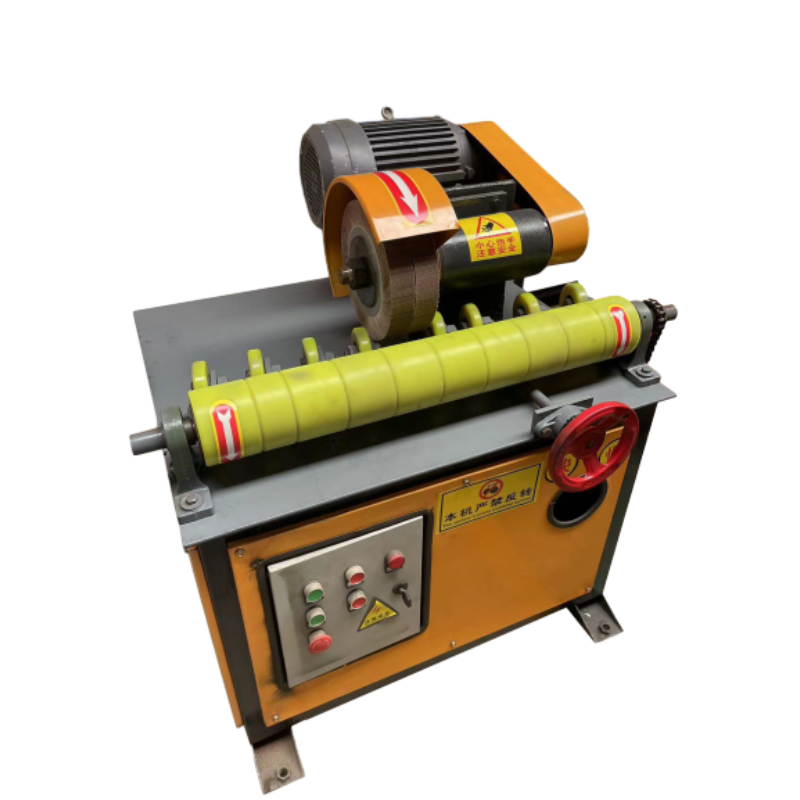

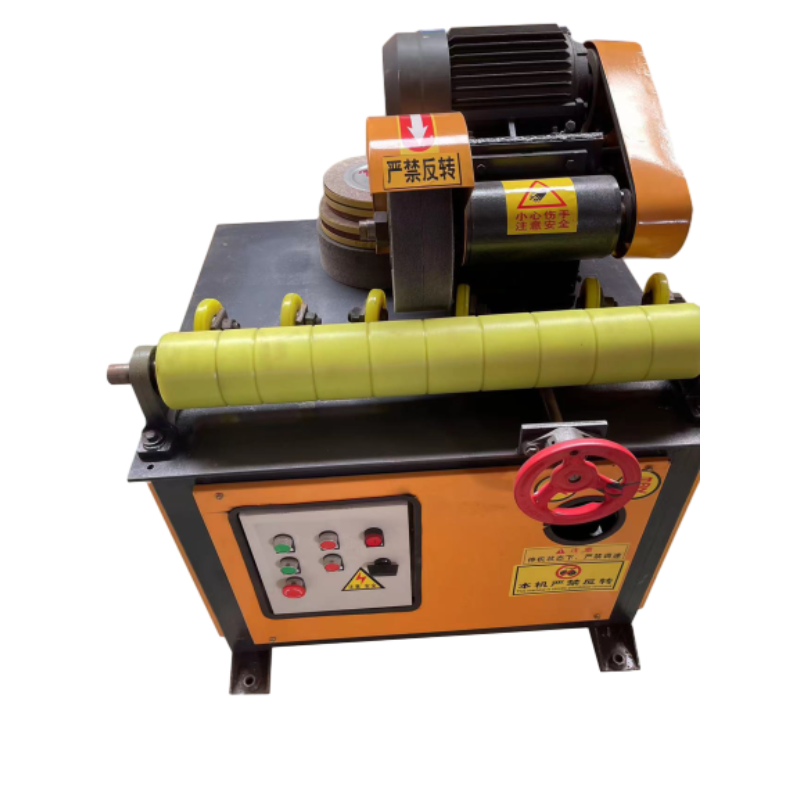

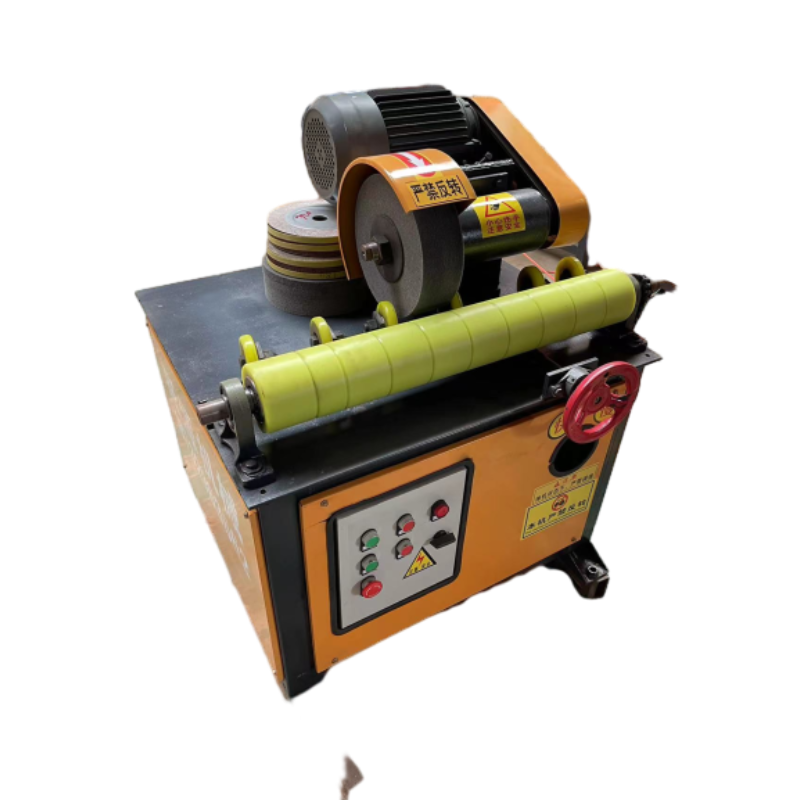

High speed stainless steel tube round pipe polishing machine

Product Description

This machine is mainly used in: hardware, electroplating, steel wood furniture, standard parts, automobile and motorcycle parts and hydraulic transmission and other manufacturing industries. For a variety of axial, bar, pipe fittings cylindrical surface polishing, suitable for lathe processing after the work piece fine polishing.


Feature

1. Suitable for all kinds of pipes and axial surface polishing cleaning.
2. Recommended grinding consumables: nylon wheel, thousand impeller, lapping wheel (EXL, LD, CP) effectively combines with the principle of centerless grinding, the work piece cylindrical grinding quality stable and reliable, and automatic feeding.
3. The operation is simple, stable performance, can waterproof, oil and dry grinding.
4. Speed control device can be configured and equipped with environmental protection function.

Main technical parameters

Polishing machine

Type:Small horizontal style

Model:KL-120

Pipe diameter range:5-120mm

Maximum processing length:0-2000mm

Voltage:110/220/380V

Power:3KW

Wheel rotation speed:2800rmp(Adjustable)

Dimension:80*95*90cm

Weight:160kg

Working speed:0-10m/min

Polishing machine

Type:Big vertical style

Model:KL-200

Pipe diameter range:5-200mm

Maximum processing length:0-9000mm

Voltage:110/220/380V

Power:4KW

Dimension:1200*800*1000mm

Weight:250kg

Working speed:0-10m/min
