Introduction:

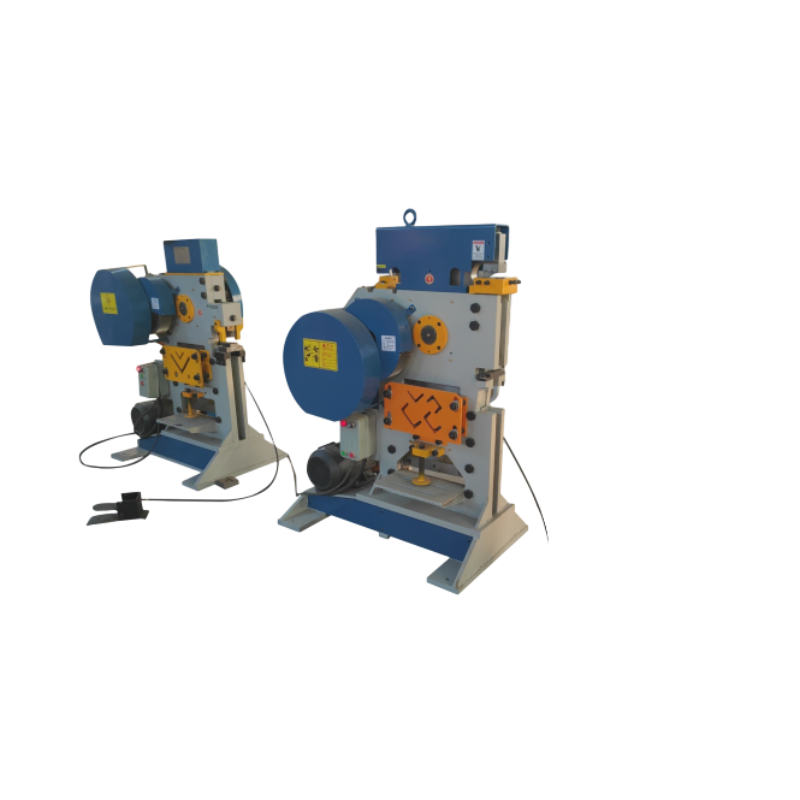

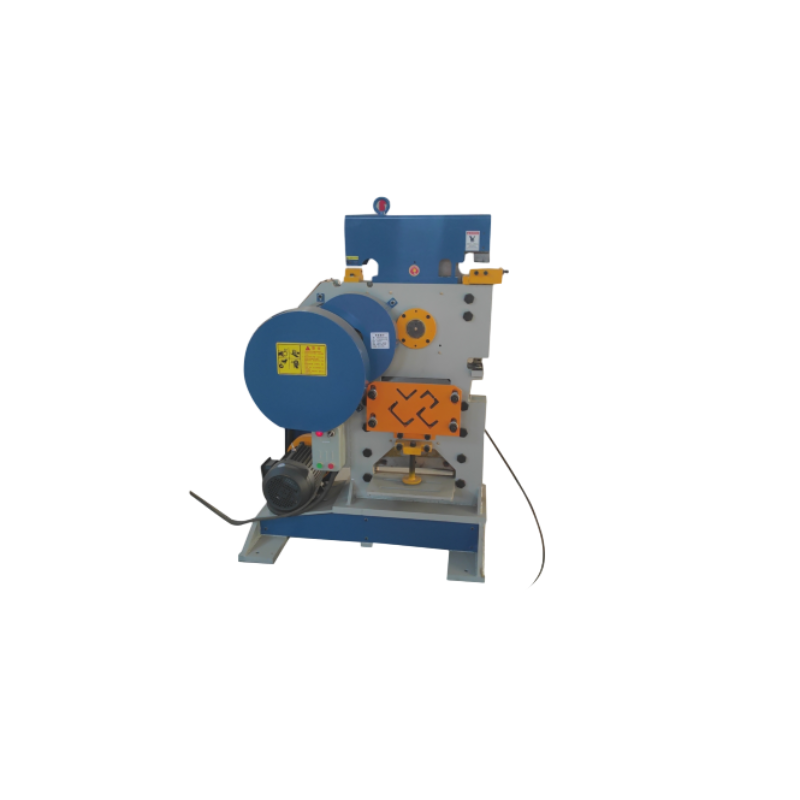

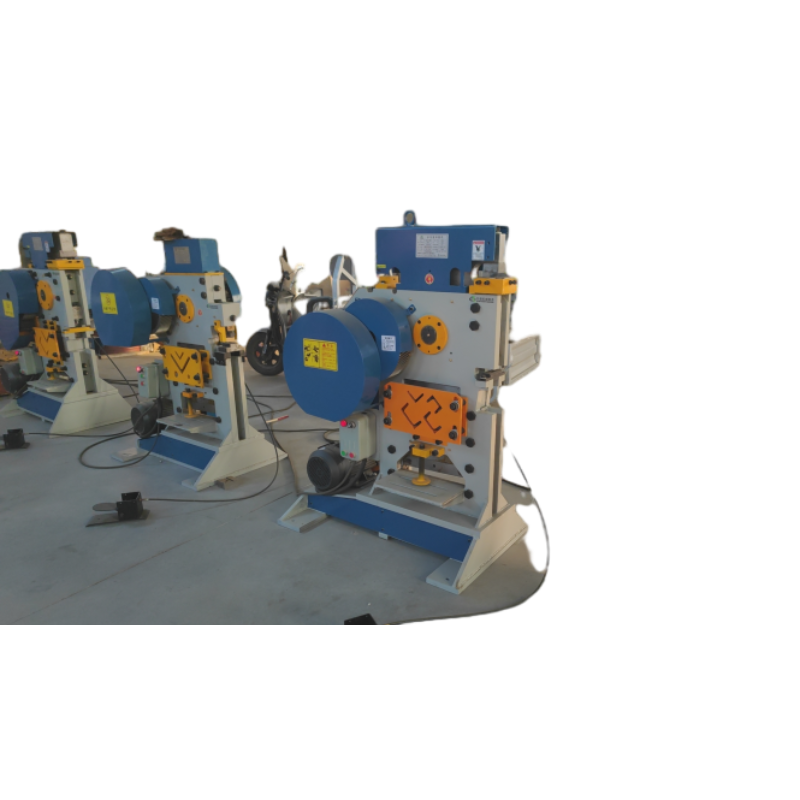

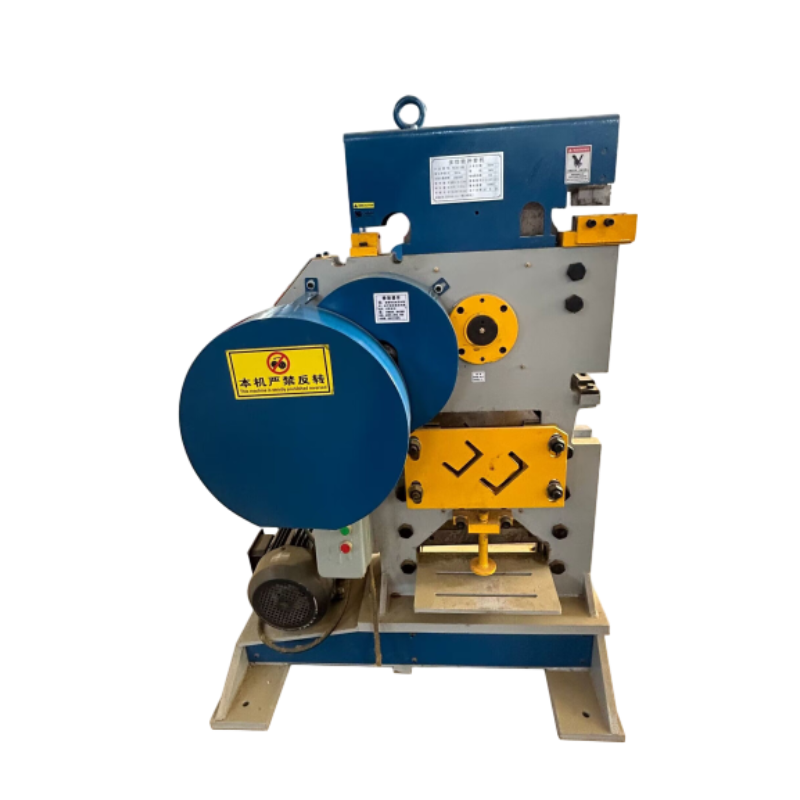

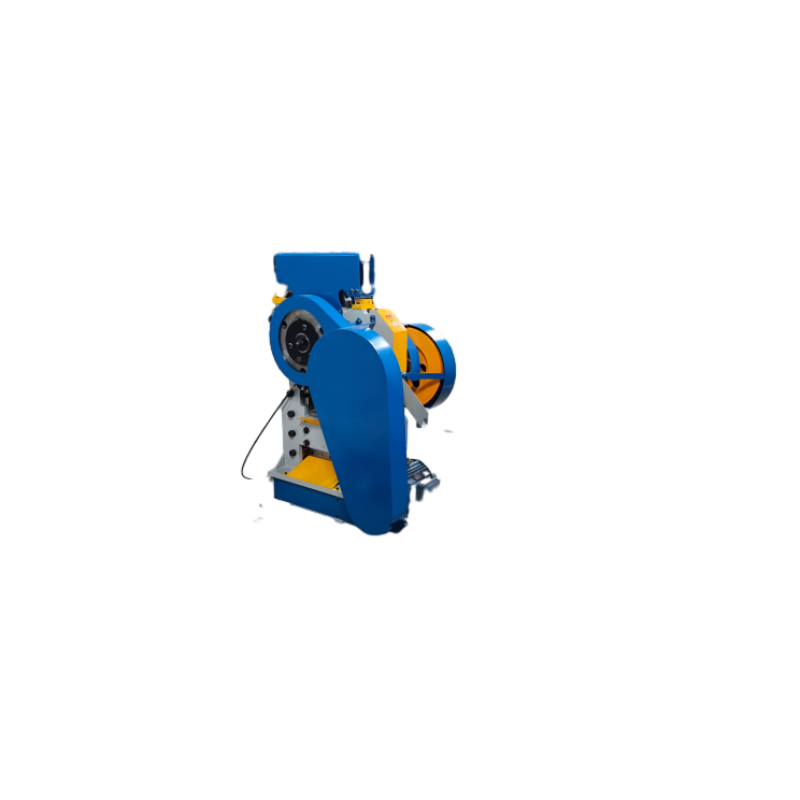

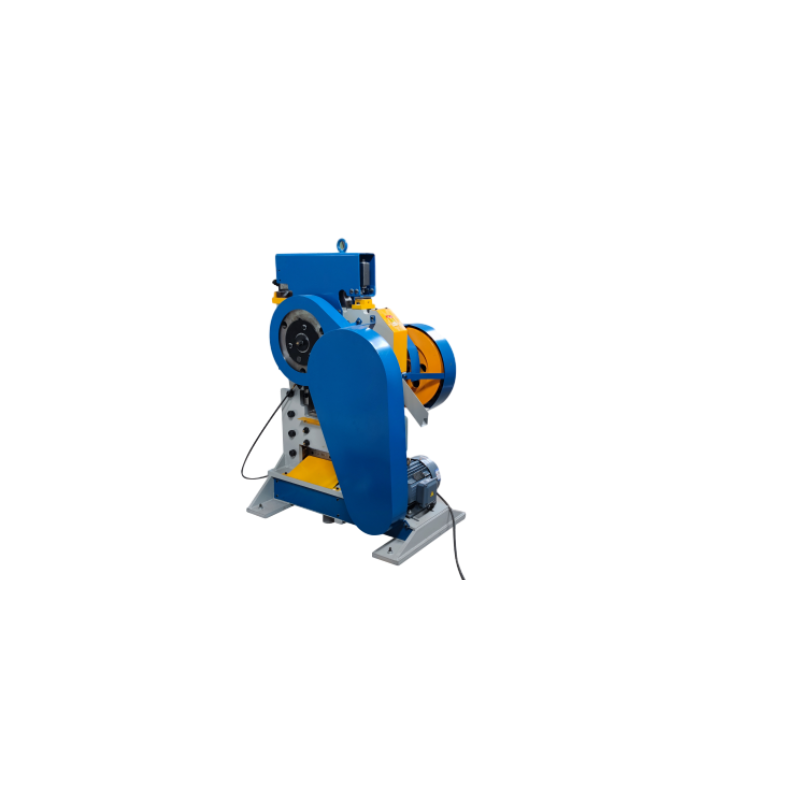

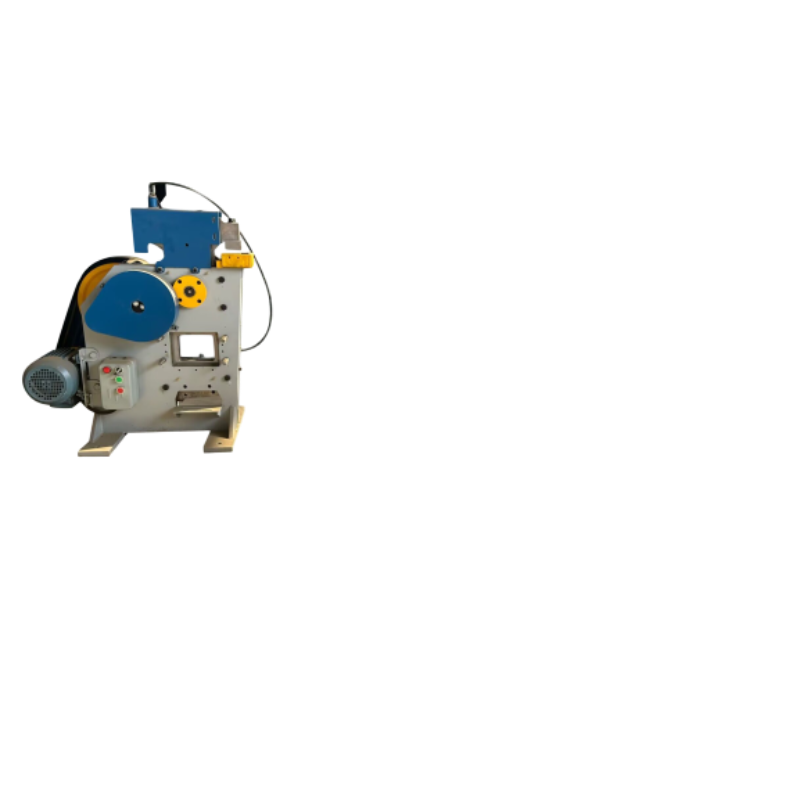

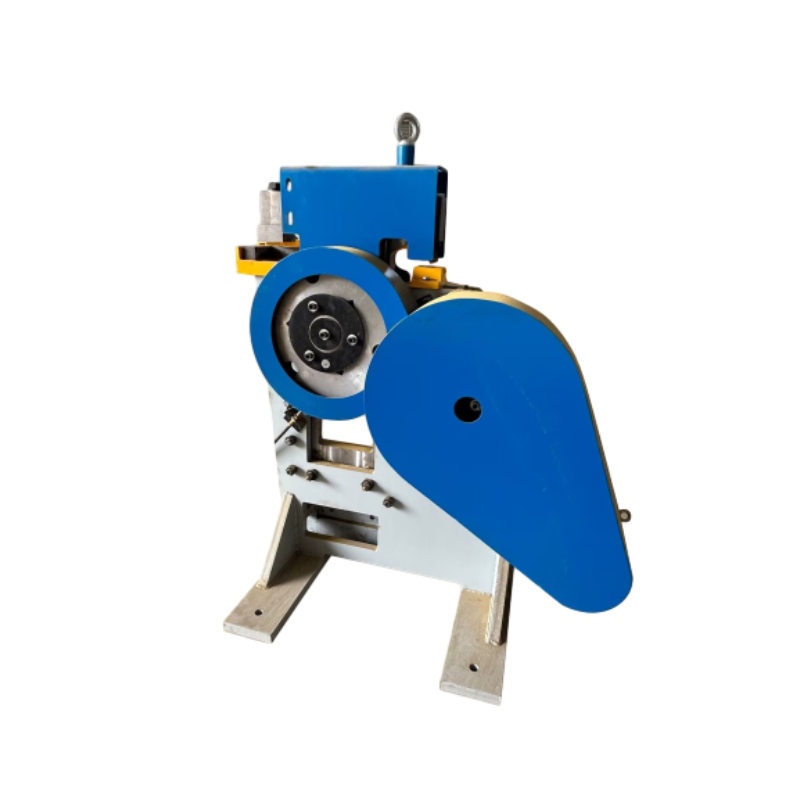

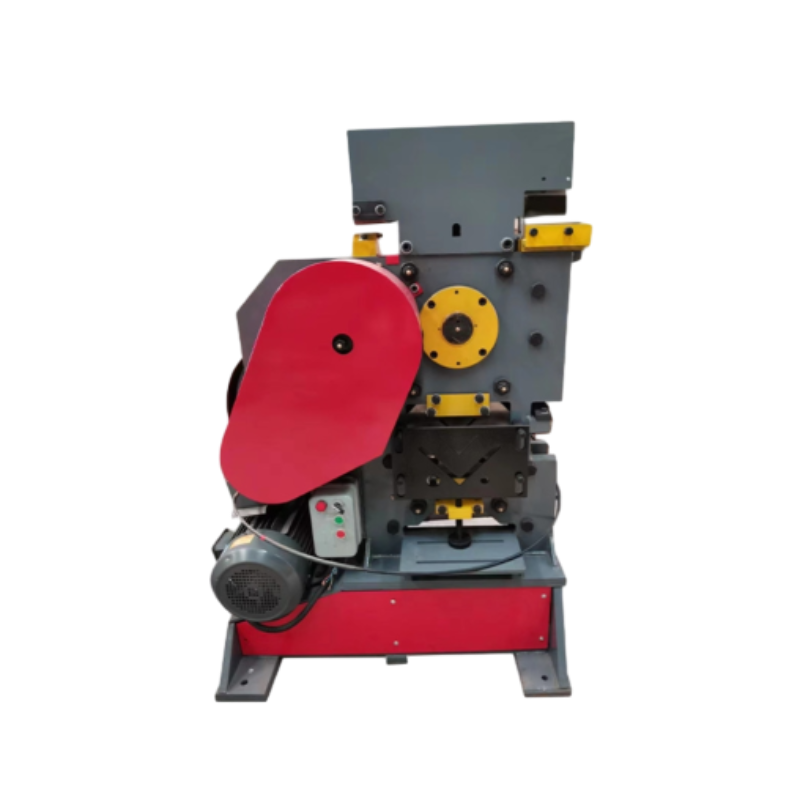

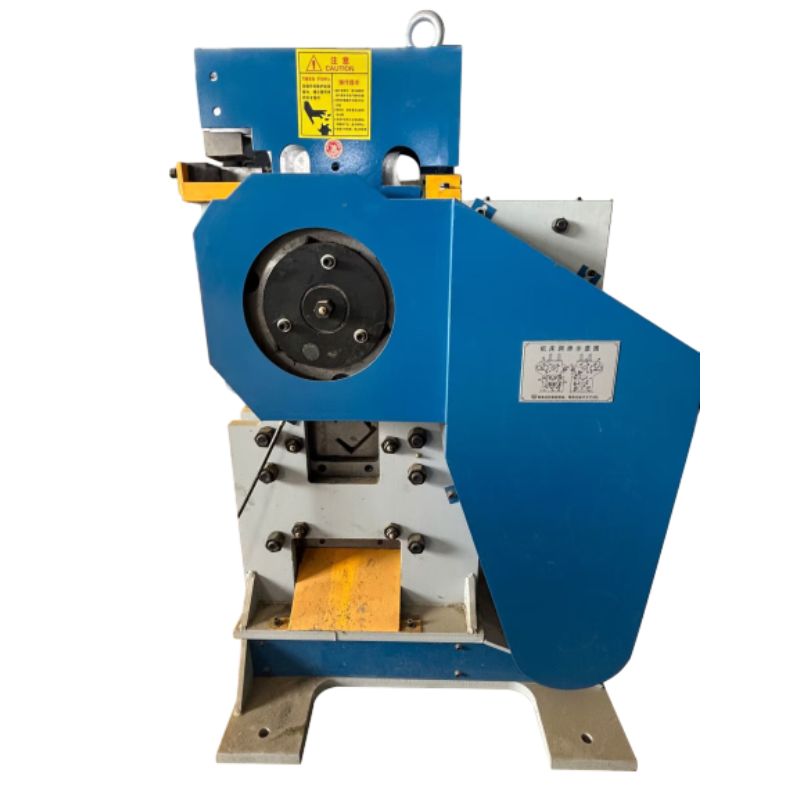

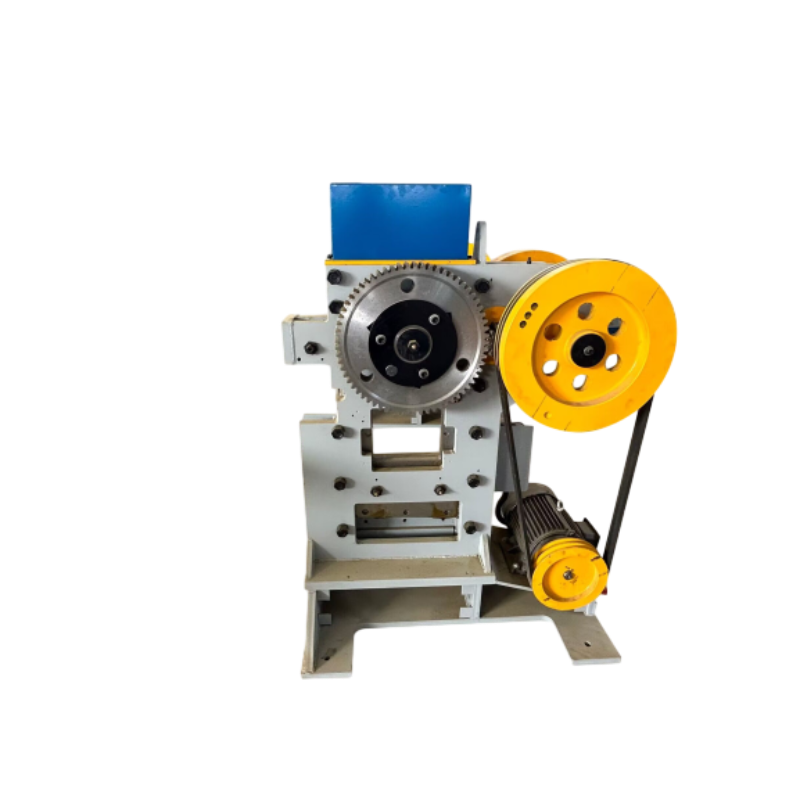

This is a ideal small iron workerwidely used in shearing sheet metal, shaped metal and punching shaped metal, holes and in die shearing,it is really the skill full
equipment in shearing and punching shaped metal for the vast number of the customers in the industries of machine making.
Model |
Unit |
KL32-8B |
KL32-12B |
Punching pressure |
KN |
360 |
900 |
Max. cutting/punching thickness |
mm |
8 |
12 |
Slipper stroke |
mm |
27 |
36 |
Travel times |
time/min |
30 |
30 |
Throat depth |
mm |
200 |
355 |
Punching thickness |
mm |
8 |
12 |
Max. punching diameter |
mm |
22 |
26 |
Main motor power |
Kw |
2.2 |
4 |
Dimension |
mm |
900*500*1100 |
1100*600*1450 |
Weight machine |
kg |
500 |
1000 |
