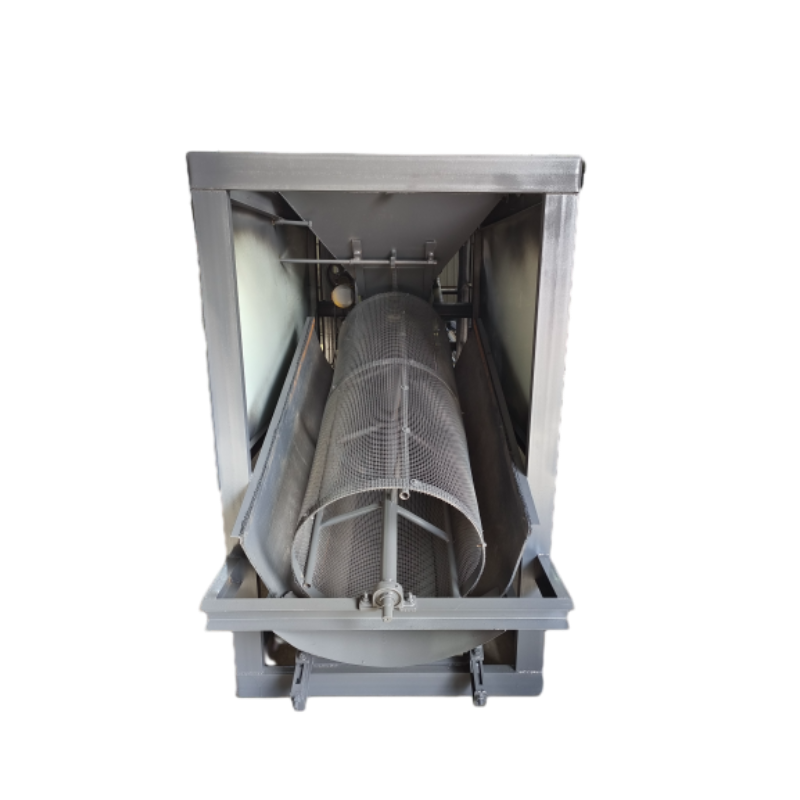

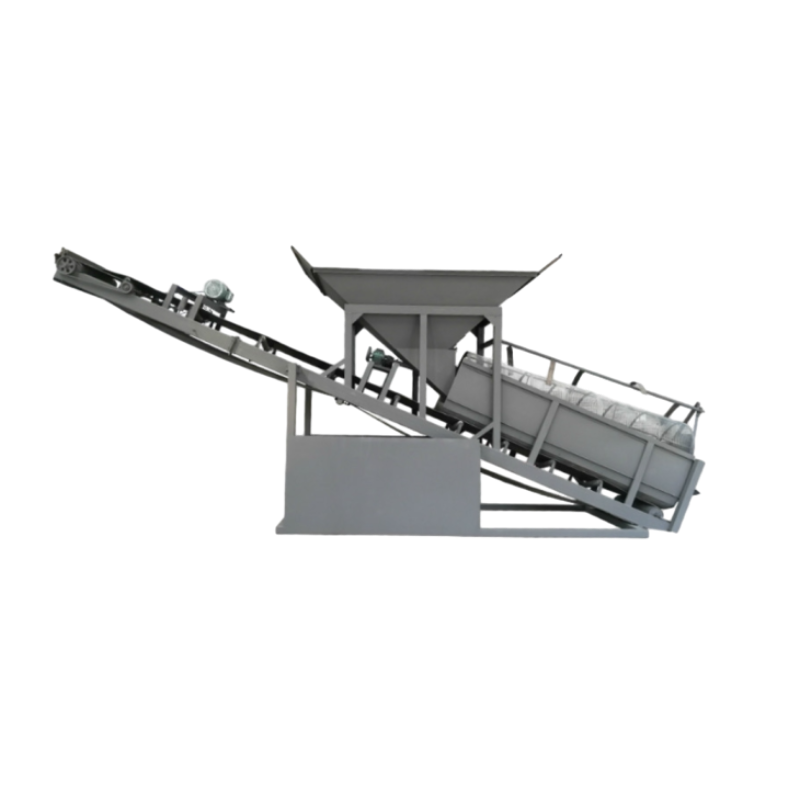

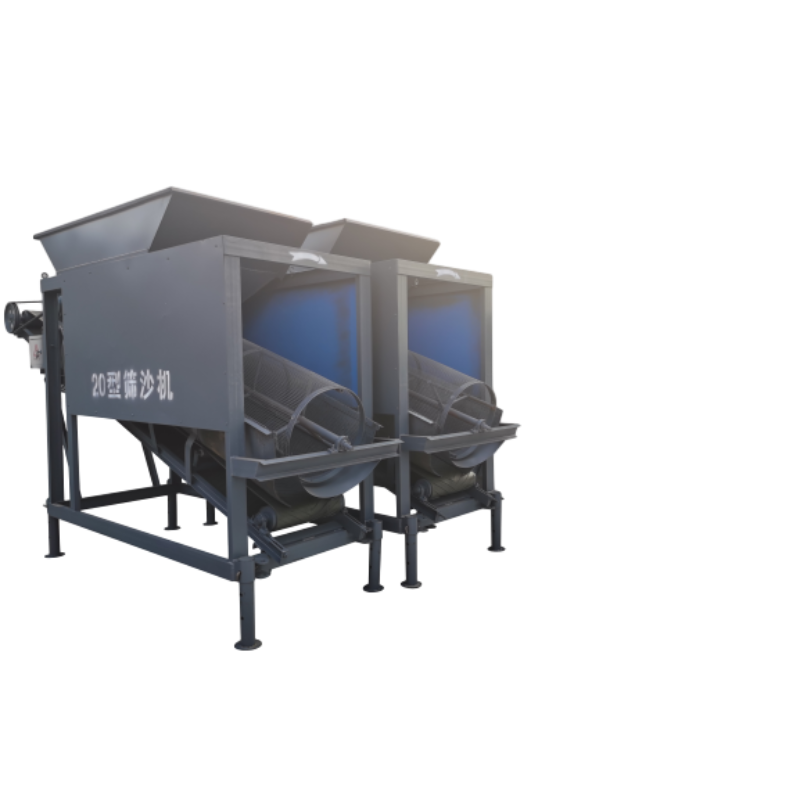

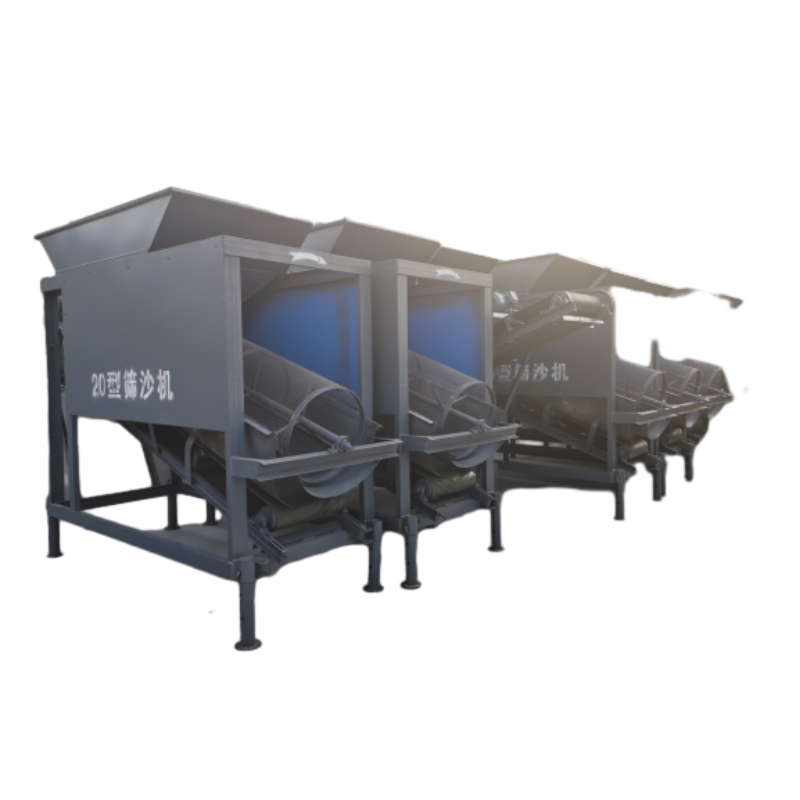

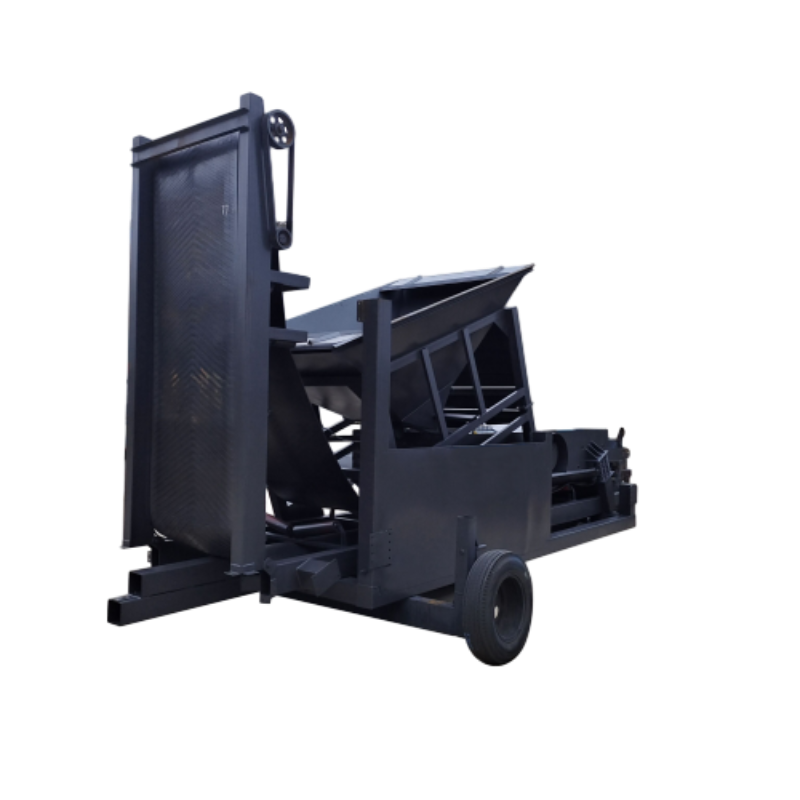

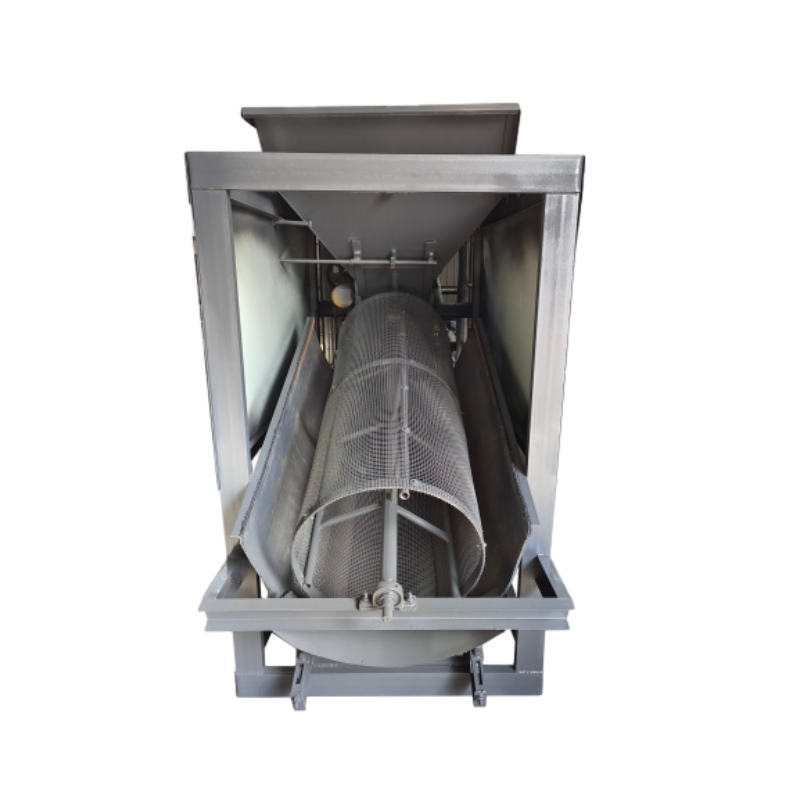

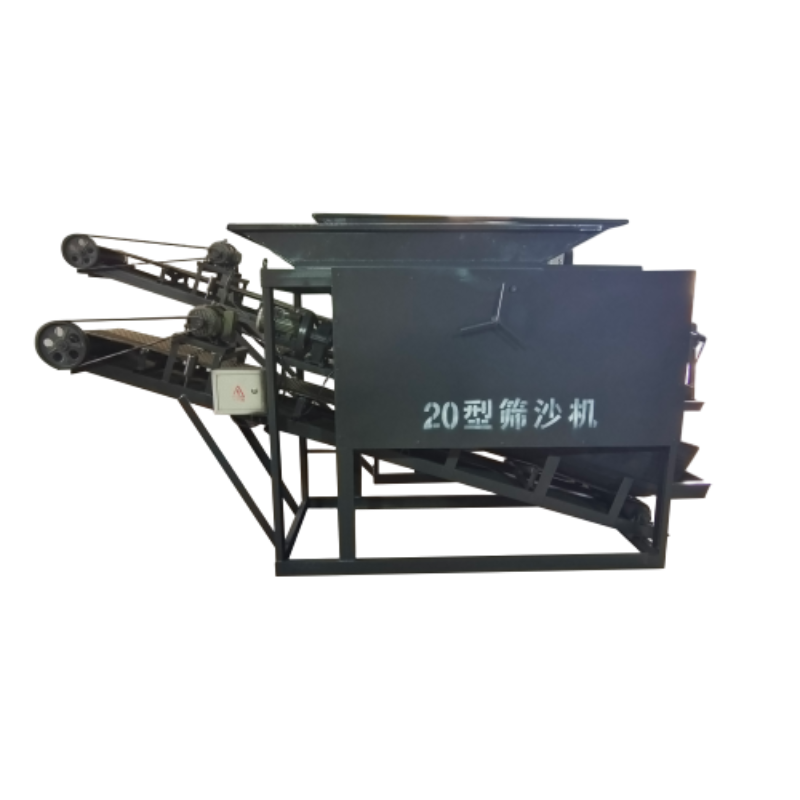

The sand screening machine is to install the sand screen on the steel frame, which is powered by the electric motor and the power transmission device. When the material (sand, grain, coal, etc.) is added to the screen, the rolling screen makes the material roll and rotate. The material will then be screened on the conveyor belt, which will send the selected material out. To improve the quality of equipment and services; we support the customization of conveyor belts and rotary screens. In addition, the feeding hopper is enlarged and the frame of the sand screening machine is reinforced. Our sand screener motors are high quality copper wire motors. The sand screening machine is suitable for sand mining, construction plants, coal mines, and grain screening
Model |
KL-20X |
KL-30X |
KL-50X |
Mesh size |
1.5cm |
1cm |
1.5cm |
Main motor |
4kw |
7.5kw |
11kw |
Mesh motor |
2.2kw |
4kw |
4kw |
Size |
4.2*1.1*2.2m |
8.5*1.6*3.2m |
9.5*1.95*3.5m |
Weight |
800kg |
1700kg |
1950kg |
Capacity |
30-35 cubic meters/ hour |
60-80cubic meters/hour |
100-120cubic meters/hour |
Hopper |
1.1*2m |
1.5*3.2m |
1.6*3.4m |
Conveyor |
0.5*8m |
0.8*3m |
1*18m |
Vibration motor |
0.5kw |
0.5kw |
0.5kw |
Annular |
4m |
8m |
9m |
